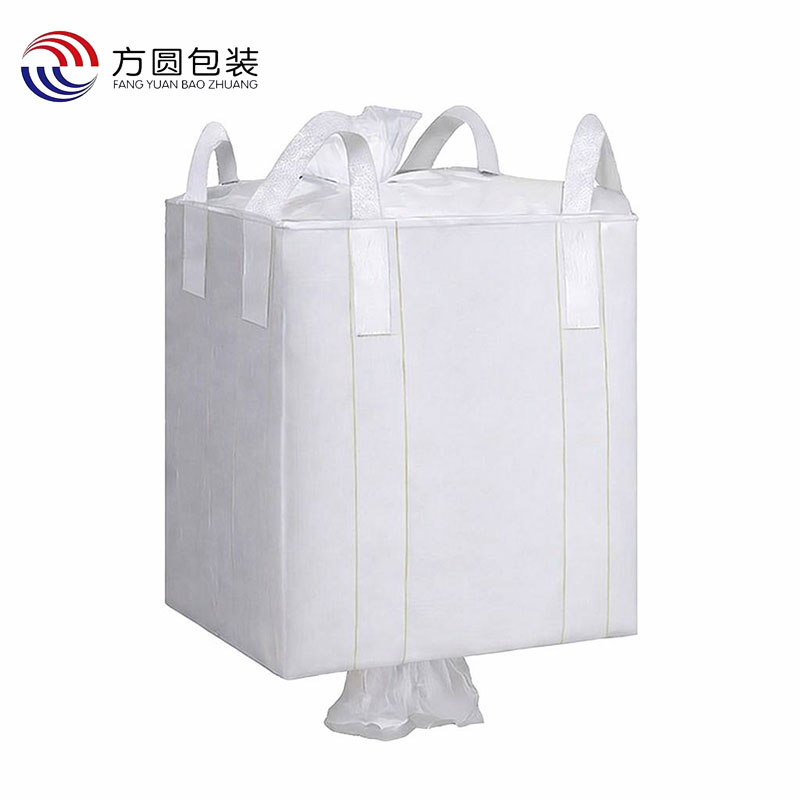

Custom FIBC bulk bags from 500kg to 2,000kg with coated fabric, 4-loop lifting, discharge spout and optional PE liner. Factory-direct, 5:1 safety factor.
|
Parameter |
Details |
|
Load Capacity |
500kg – 2,000kg SWL (custom sizes available) |
|
Fabric |
Coated or uncoated circular-woven PP, 160–220gsm double-warp |
|
Safety Factor |
5:1 single-trip standard; 6:1 available on request |
|

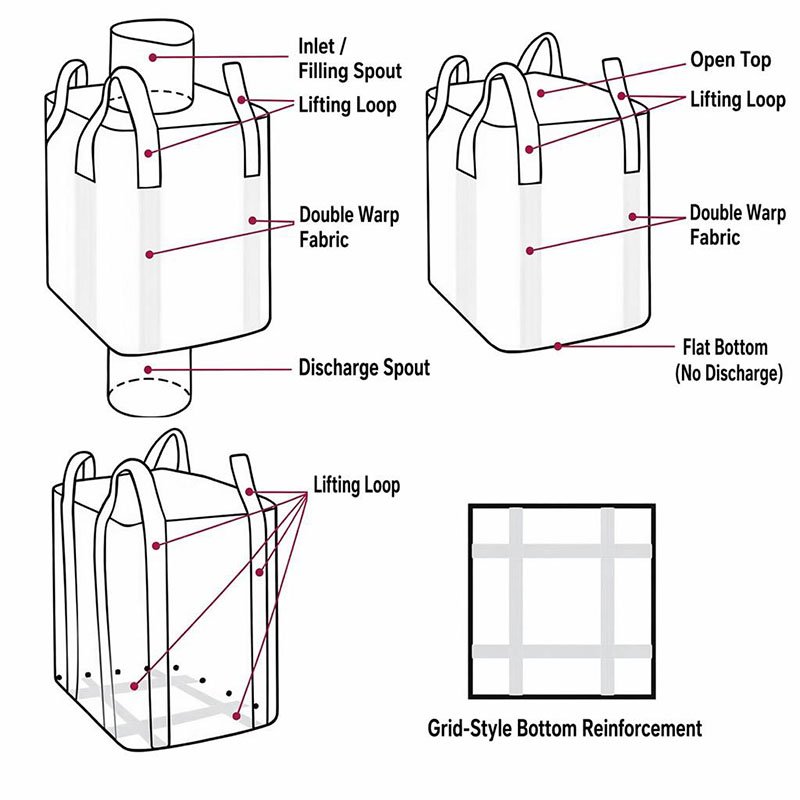

Top Design |
Open top / duffel top / filling spout (Ø350–500mm) |
|
Bottom Design |
Flat bottom or discharge spout with iris / petal closure |
|
Lifting Loops |
2-loop or 4-loop, cross-corner or vertical sewn |
|
Bottom Reinforcement |
X-style or #-style (grid) reinforcement panel |
|
Inner Liner |
Optional LDPE / HDPE liner, 30–100µm |
|
Printing |
Up to 4 colours, flexographic, on 2 or 4 sides |
Built for dense, abrasive loads. The double-warp circular fabric and reinforced bottom panel take the point load that breaks standard jumbo bags at the discharge corner, while dust-tight seam stitching keeps fine powder inside the bag during filling and transport.
Coated fabric blocks moisture pickup in humid climates, and an optional PE liner adds a second barrier for hygroscopic products such as urea and NPK blends. Both options are specified against your storage conditions rather than sold as a default.
Food-grade liner and clean-environment production lines are available for feed and grain applications. Venting options prevent condensation inside the bag when the product is loaded warm or shipped through temperature swings.
The discharge spout cuts unloading time on site and reduces the dust cloud compared with tipping a flat-bottom bag. For sand, gravel and dry-mix products, the spout diameter is matched to your receiving hopper.
Every batch is cyclic-lift tested to six times its rated load before it leaves the plant. Fabric weight,seam strength, loop attachment and UV content are checked against the approved sample, so the bag that arrives is the bag you signed off on.
We stand behind the quality of our industrial packaging with strict testing standards. Our multi-wall kraft paper bags undergo rigorous drop tests and moisture-resistance evaluations to protect your materials in all weather conditions.
Fill out the form below and our team will get back to you within 24 hours.
